Description
I have ordered stack of parts based on youtube video and 5 inch drone frame with 1500 4S battery pack. I Have now tried to draft wiring diagram with help of software and AI and some videos how wiring should be done.
Just in case i also have smoke stopper ordered.
If you find any mistakes on this i would be happy to have them pointed out as i am just learning but at least it seems valid for application which is btw amazing tool!
Composants
SpeedyBee BLS 60A 3-6S 4in1 ESC - 30x30mmESCEn stockÀ partir de $78.75Disponible dans 1 magasins
SpeedyBee F405 V3 3-6S 30x30 Flight ControllerContrôleur de volEn rupture de stock
SpeedyBee TX800 20x20 25-800mW 5.8GHz VTX - MMCXÉmetteur vidéoEn stockÀ partir de $36.43Disponible dans 5 magasins
CaddxFPV Ratel2 Analog CameraAppareil photoEn stockÀ partir de $31.84Disponible dans 6 magasins
2.4G ELRS Nano ReceiverRécepteurEn stockÀ partir de $11.77Disponible dans 2 magasins
JHE42B Smart BuzzerAutresEn stockÀ partir de $13.70Disponible dans 1 magasins
Câblage

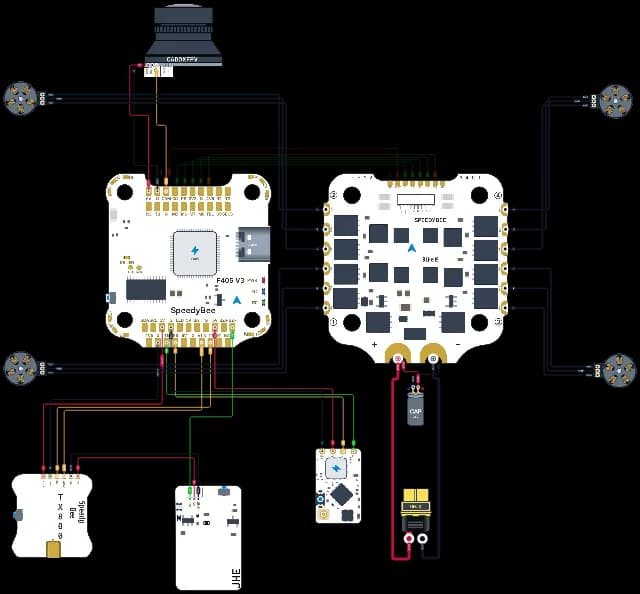

5 inch drone draft circuit
Ouvrir le schéma completBuilds similaires
S
2 oct. 2026
Détails du build
| Catégorie | Freestyle |
|---|---|
| J'aime | 1 |
| Vues | 37 |
| Système vidéo | Analogique |
Crée ta propre configuration
Dispose tes pièces dans le Drone Builder et laisse l'assistant de câblage déterminer quelles pièces se connectent entre elles.
Ouvre Drone Builder
Commentaires (3)
Ttpetersons This is pretty cool. Make sure to update this thread with IRL photos once your build is done. 🔥
BTW, is that a common practice to power your buzzer from VTX? Why not using the pads on the FC? Ssimusami Auteuri dont know how common it is . Problem seems to be that if i power buzzer from FC then i get in software error that railing apacity to supply voltage is exceeded. I just couldnt get that annoucement go away no matter what power output i tried. Only way was then to power VTX from FC 4V5 output which gives 4.5V to VTX. According information in application VTX voltage is between 3.7 -5 V so i am not fully sure would 4.5V be ok? Ssimusami AuteurThis is just my first build and learning as i go. I am now going to weekend course of drone building so i might get answer there as whole weekend saturday&sunday is about theory and different drone componments etc. I am sure i can get answer there to my question :)
