My first 5 inch drone

Descripción

I have ordered stack of parts based on youtube video and 5 inch drone frame with 1500 4S battery pack. I Have now tried to draft wiring diagram with help of software and AI and some videos how wiring should be done.

Just in case i also have smoke stopper ordered.

If you find any mistakes on this i would be happy to have them pointed out as i am just learning but at least it seems valid for application which is btw amazing tool!

Componentes

SpeedyBee BLS 60A 3-6S 4in1 ESC - 30x30mmESCEn stockDesde $78.75Disponible en 1 tiendas
SpeedyBee F405 V3 3-6S 30x30 Flight ControllerControlador de vueloAgotado
SpeedyBee TX800 20x20 25-800mW 5.8GHz VTX - MMCXTransmisor de vídeoEn stockDesde $36.43Disponible en 5 tiendas
CaddxFPV Ratel2 Analog CameraCámaraEn stockDesde $31.84Disponible en 6 tiendas
2.4G ELRS Nano ReceiverReceptorEn stockDesde $11.77Disponible en 2 tiendas
JHE42B Smart BuzzerOtrosEn stockDesde $13.70Disponible en 1 tiendas

Cableado

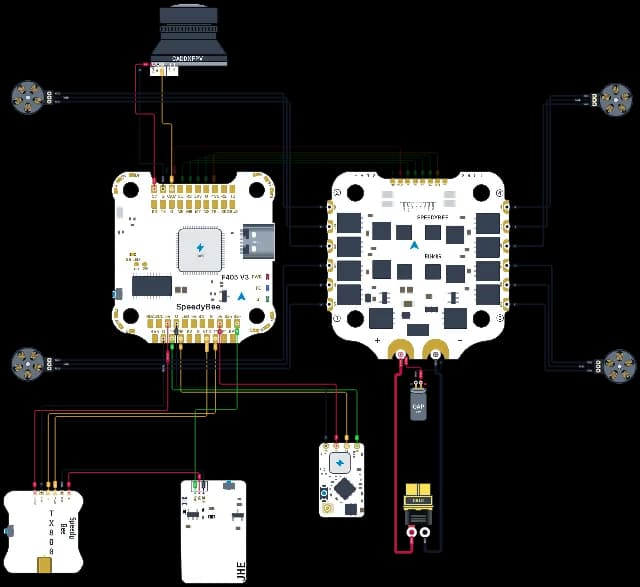

5 inch drone draft circuit

Abrir el esquema completo

Comentarios (3)

T
tpetersons6h
This is pretty cool. Make sure to update this thread with IRL photos once your build is done. 🔥 BTW, is that a common practice to power your buzzer from VTX? Why not using the pads on the FC?
- S
  simusami30m
  Autor
  i dont know how common it is . Problem seems to be that if i power buzzer from FC then i get in software error that railing apacity to supply voltage is exceeded. I just couldnt get that annoucement go away no matter what power output i tried. Only way was then to power VTX from FC 4V5 output which gives 4.5V to VTX. According information in application VTX voltage is between 3.7 -5 V so i am not fully sure would 4.5V be ok?
- S
  simusami28m
  Autor
  This is just my first build and learning as i go. I am now going to weekend course of drone building so i might get answer there as whole weekend saturday&sunday is about theory and different drone componments etc. I am sure i can get answer there to my question :)
