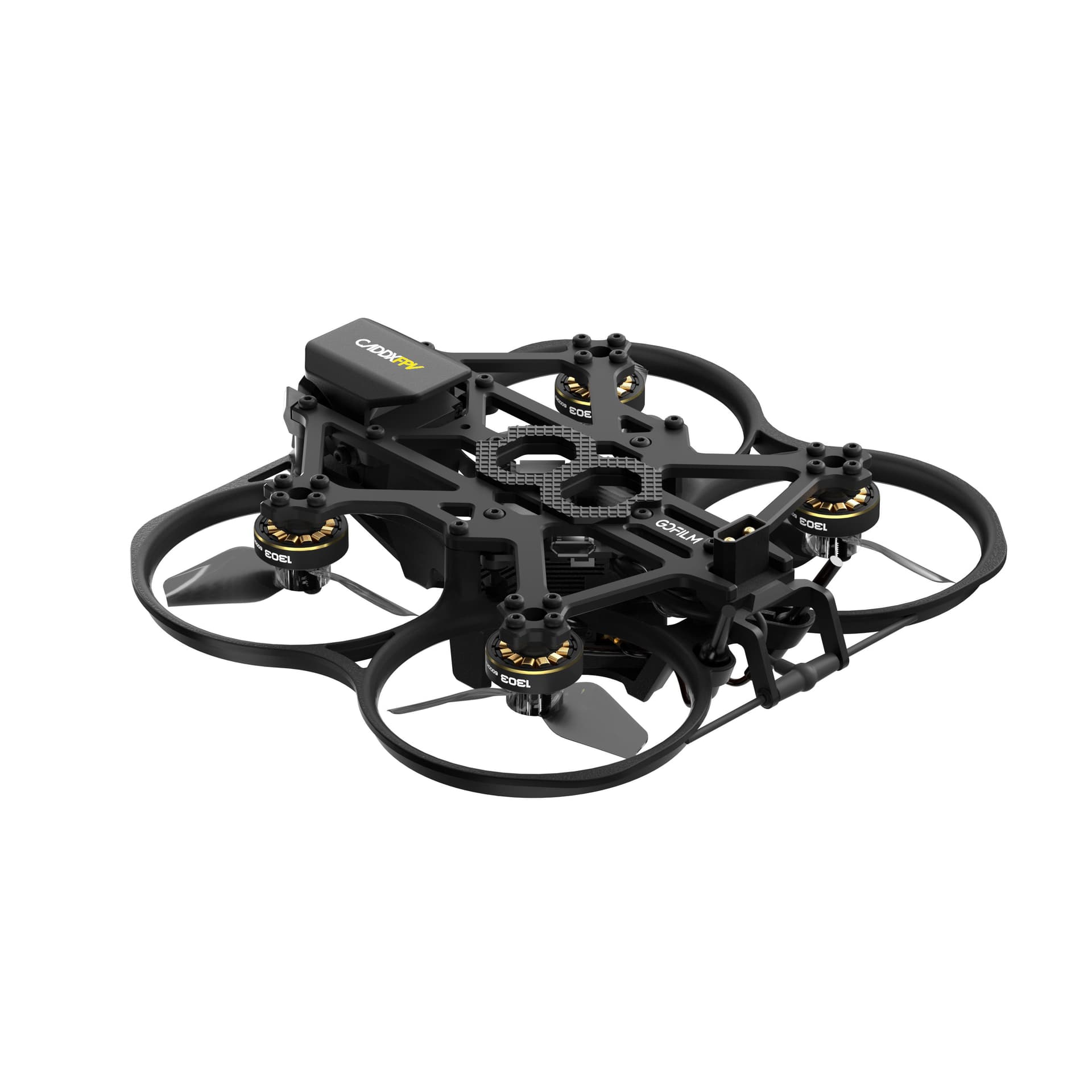

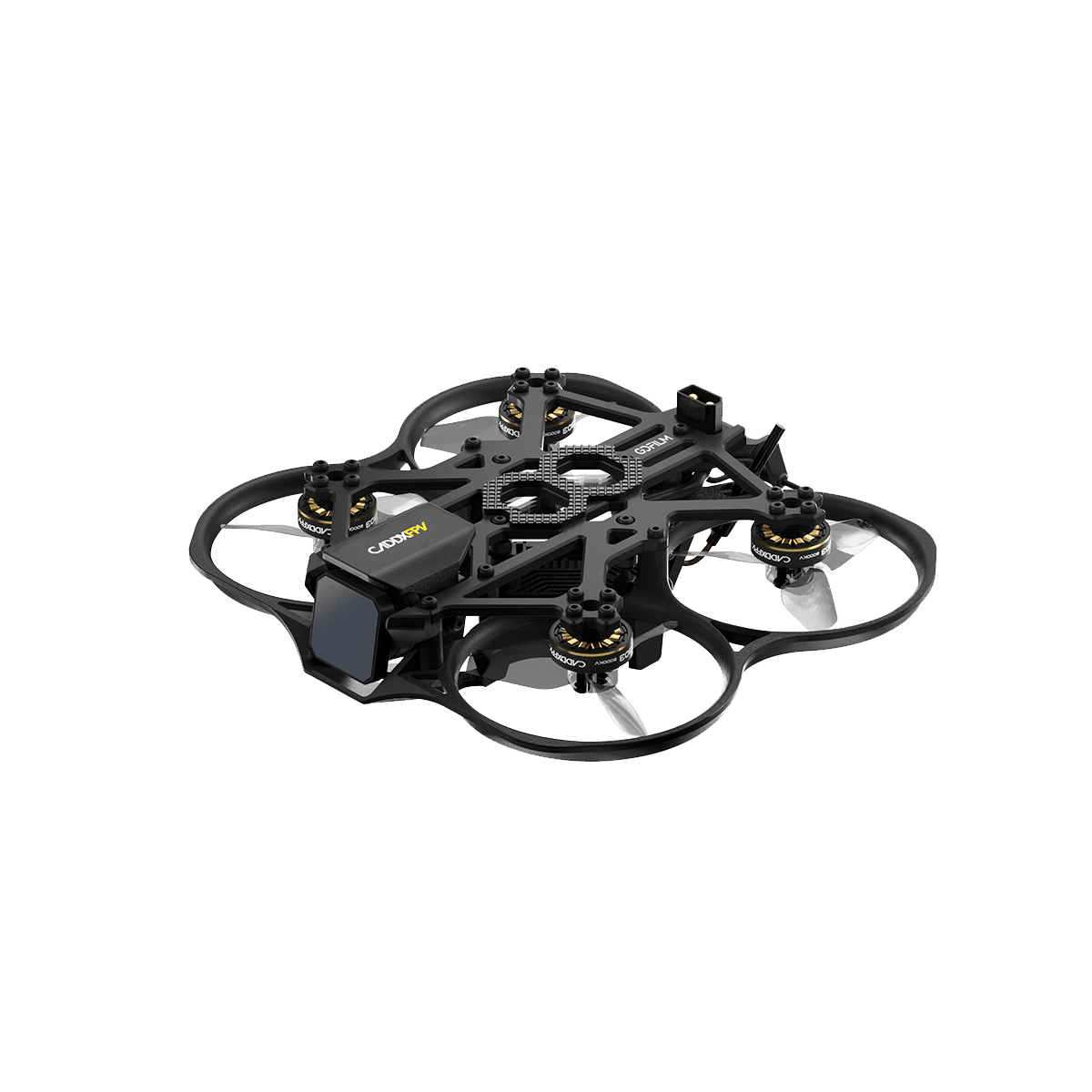

CADDXFPV Gofilm 20

Model: Gofilm 20 FC: CADDXF4_AIO_ELRS VTX: Moonlight Kit Wheelbase: 94mm Motor: 1303 6000KV Propeller: HQprop T2×2×3 Weight: 115±5g Size: 133×123×39mm Flight time: 4S 650mAh & about 5.5 minutes Receiver: ELRS 2.4G Battery interface: XT30 FC MCU: STM32F405RGT6 GYRO and IMU: ICM42688 Barometer: BMP280 ExpressLRS receiver: ELRS V3.0 UART ESC: 20A 4-IN-1 Blackbox: 8MBp Support power: 2~4S Lipo/Lihv Mounting hole distance: 25.5×25.5mm Firmware target: CADDXF4_AIO_ELRS VTX Model: Moonlight Kit Firmware name: AvatarMoonlight_Sky_X.X.X Communication frequency: 5.725-5.850 GHz Transmitter power (EIRP): FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm I/O interface: JST1.0*4(power cable); JST0.8*6(USB)；microSD Card Slot; IPEX-1 Sensor: Starlight sensor FOV: Max 160° Aperture: F2.1 Shutter: Rolling shutter ISO: 100-25600 Recording resolution: 4K@30/60fps; 2.7K@30/60fps; 1080p@100/60fps; 720p@60fps Max Mbps: 150Mbps Video format: MP4 (H.264) 3D DNR: Support Gyro flow: Support Built-in EIS: Support Wide power input: 7.4V-25.2V Power consumption: [email protected], [email protected] Memory card type: U3 microSD, Max 256G Camera size: 19.6mm×19mm×24mm VTX size: 15.3mm×34.5mm×34.5mm VTX installation hole: 20×20mm/25×25mm (M2) Weight: 38.5g (antenna not inlcuded) OSD: Canvas mode Latency: Average delay 22ms Antenna: 2 (IPEX)
