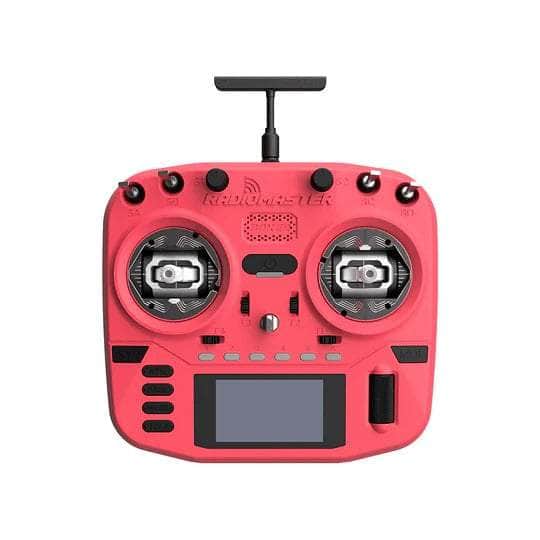

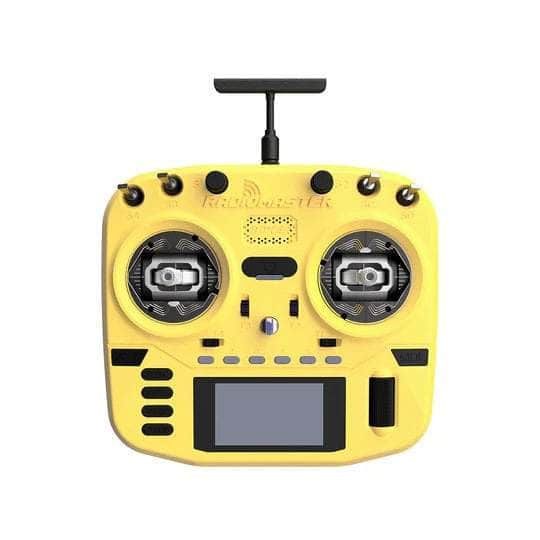

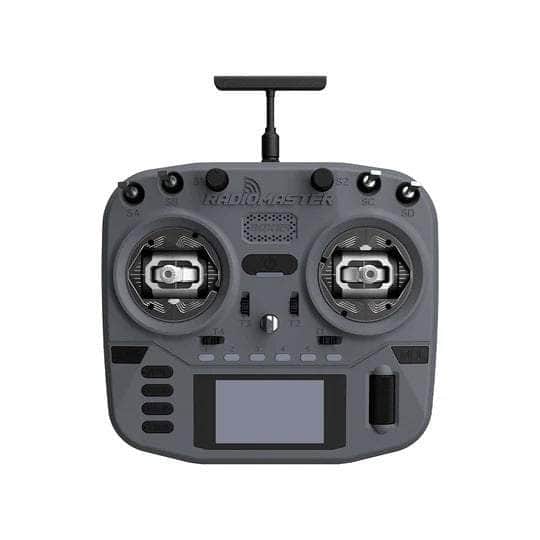

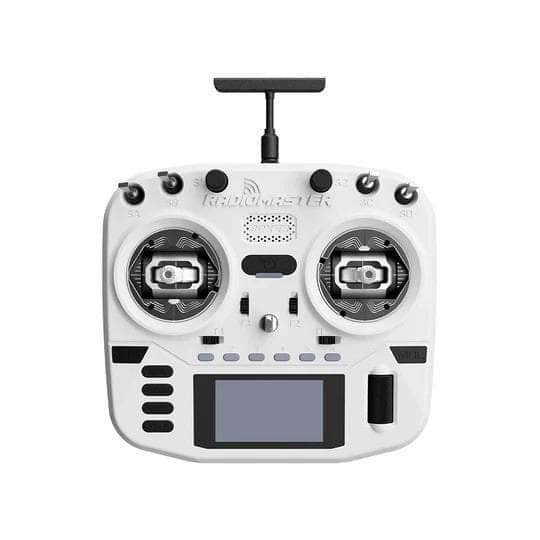

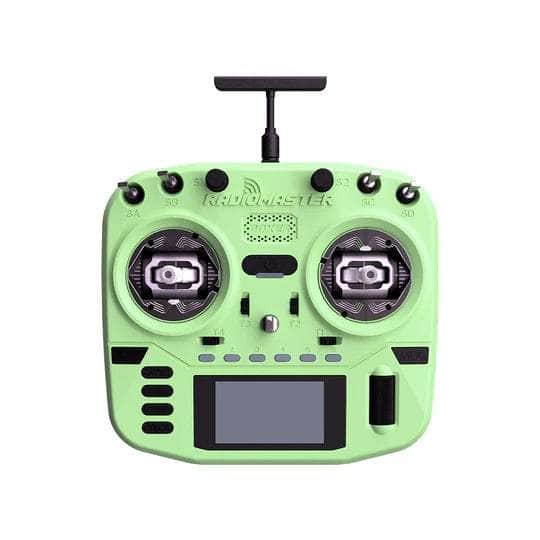

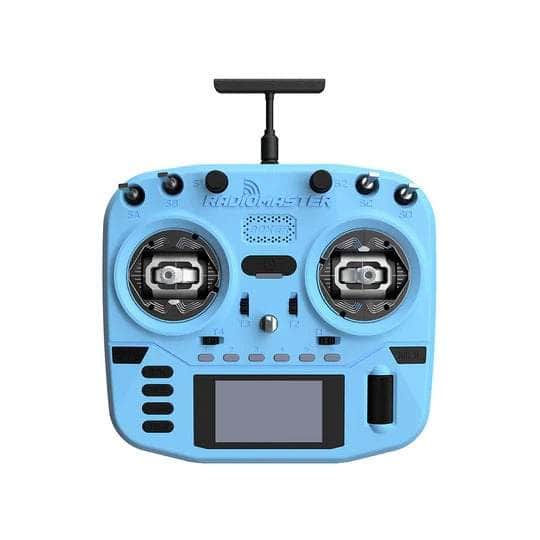

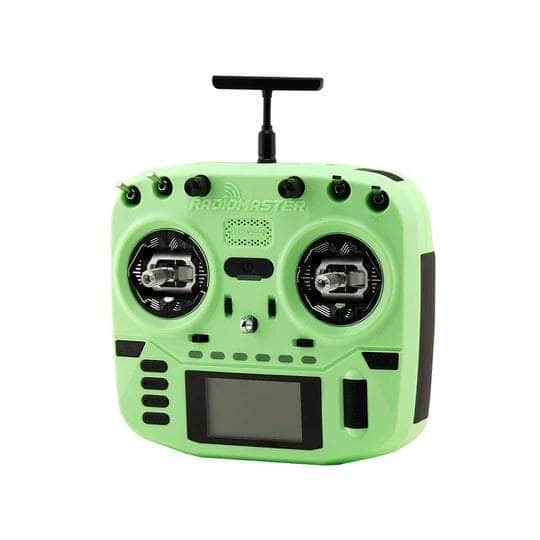

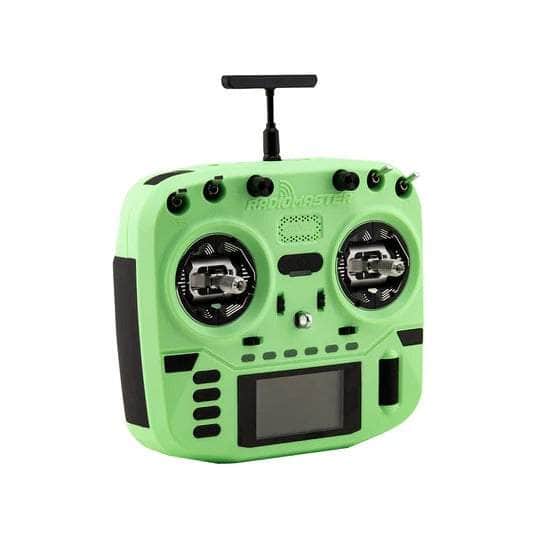

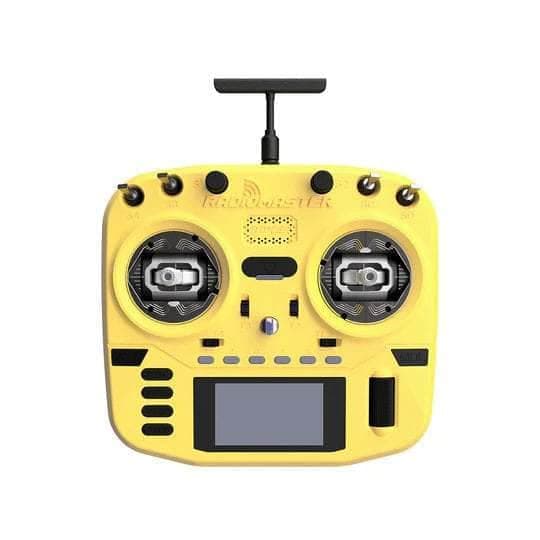

RadioMaster Boxer Crush Radio Controller - ELRS 2.4GHz

LIKE NEW - Ranger 2.4GHZ ExpressLRS ELRS RF Module OLED Display for Futaba RC Transmitter FPV RC Ra

Radiomaster Ranger 2.4GHZ ExpressLRS ELRS RF Module OLED Display for Futaba RC Transmitter FPV RC Racing Drone

Precise details:

The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

Featuring an OLED display, a directional menu key, and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.

The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Specification:

Brand: RadioMaster

Item: Ranger 2.4GHz ELRS Module

Regulatory Domain: ISM2400

MCU: ESP32(main), ESP8285(aux, as ESP backpack)

RF chip: SX1281IMLTRT

Frequency Range: 2400 MHz - 2480 MHz

Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)

Minimum receiver refresh rate: 25Hz

RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)

Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket

Futaba CRSF socket cable: Included

OLED screen: 64x128px

Wifi Support: Yes

Bluetooth support: Yes

3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)

Built-in RGB light strip

XT30 Power supply voltage: DC 6V - 16.8V

Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)

Dimension: 95*51*25mm (without antenna)

Features:

* OLED Display.

* Rugged CNC Case.

* Built-in Accelerometer.

* Packet rates up to F-1000Hz.

* Up to 1 Watt Power output.

* Wifi and Bluetooth support.

* High-efficiency cooling system.

* 5 Direction Nav key and customizable shortcut buttons.

* Micro and Nano adapters included.

* Moxon and T-antenna included.

* CRSF cable for compatible Futaba radios included.

Package Included:

1 * RANGER Module

CASH ON COLLECTION

PLEASE ADD 10 EURO FOR REG POST

LISTED ON ADVERTS.IE UNDER CAMTEC

IF YOU WANT TO SEE MY FEEDBACK
